AudioControl PNW-35

AudioControl PNW-35

$239.95 CAD
$239.95 CAD
Sale Sold out

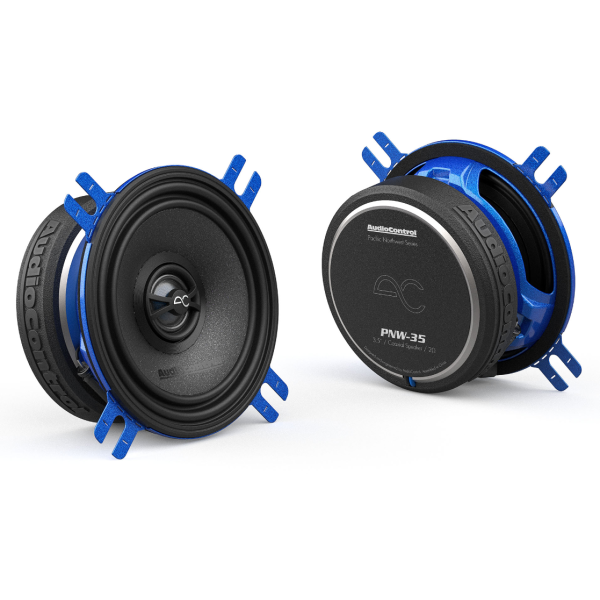

AudioControl - PNW 3.5inch Coaxial Speaker 75W RMS 2Ω 2-way/No Grilles



Specifications

Crossover Type                                     Butterworth

DC Resistance (Re).                              1.75 ohms

Filter Type                                             HP

System Frequency (Fs) Response     90-20k Hz

XO Frequency                                      5900 Hz

Slope (Octave)                                      -6 dB

Tweeter Voice Coil Diameter           13 mm

Midrange Voice Coil Diameter        25 mm

in the box:

PNW-35, Manual, Warranty

Dimensions

  • Overall Diameter (w/ metal bracket): 5.23 in/ 133 mm
  • Cut Out Diameter: 3.60 in/ 91.5 mm
  • Mounting Depth: 1.66 in/ 42.2 mm
  • Height (w/o Grille): 0.16 in / 4.1 mm
  • Height (w/ Grille): 0.64 in / 16.5 mm
  • Motor Diameter (w/ Cover): 2.96 in / 75.4 mm
  • Grille Overall Diameter: 5.40 in / 137 mm
