AudioControl PNW-65

AudioControl PNW-65

$429.95 CAD
$429.95 CAD
Sale Sold out

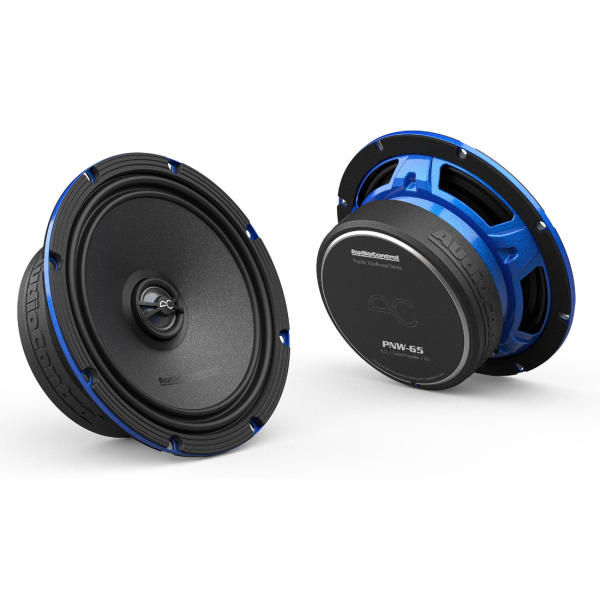

AudioControl - PNW 6.5inch Coaxial Speaker 100W RMS 3Ω 2-way w/Grilles



Specifications

Crossover Type                                    Butterworth

DC Resistance (Re).                              2.3 ohms

Filter Type                                             HP

System Frequency (Fs) Response     60-20k Hz

XO Frequency                                      5250 Hz

Slope (Octave)                                    -6 dB

Tweeter Voice Coil Diameter.           20 mm

Midrange Voice Coil Diameter.        35 mm

in the box:

PNW-65, Manual, Warranty

dimensions

  • Overall Diameter (w/o Grille): 6.5 in / 166 mm
  • Cut Out Diameter: 5.59 in / 142 mm
  • Mounting Depth: 2.36 in / 60 mm
  • Height (w/o Grille): 0.20 in / 5.2 mm
  • Height (w/ Grille): 0.86 in / 22 mm
  • Motor Diameter (w/ Cover): 4.6 in / 117 mm
  • Grille Overall Diameter: 7.05 in / 179 mm
